LC(F)-SC(M) Female to Male Duplex Hybrid Adaptor P/N:FOAD-LC(F)-SC(M)-02-HMetal manufacturer from China JKY Fiber Optics Industry Co.,LIMTED

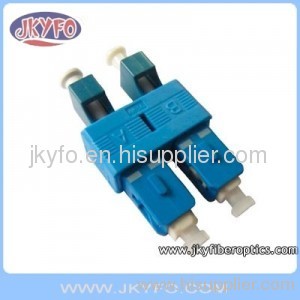

LC(F)-SC(M) Female to Male Duplex Hybrid Adaptor

Price:	0.1~10.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: P/N:FOAD-LC(F)-SC(M)-02-HMe...

Production Capacity: 10000000000pcs

Delivery Date: 5~7working days

LC: to SC fiber hybrid adaptor

LC to SC: hybrid adaptor

LC-SC: fiber hybrid adaptor

LC to SC fiber: adaptor

male fo female: duplex hybrid adaptor

Means of Transport: Ocean,Land,Air

Packing: carefully packing

Brand Name: JKYFO

female: to female hybrid adaptor

LC to SC female: to male fiber hybrid adapto...

optical fiber LC: to SC hybrid adaptor

female to female: duplex hybrid adaptor

LC(F)-SC(M) Female to Male Duplex Hybrid Adaptor

LC(F)-SC(M) Female to Male Duplex Hybrid Adaptor

An adapter is a mechanical device designed to align fiber-optic connectors. It contains the interconnect sleeve, that holds the two ferrules together.
Hybrid fiber optic adapters offer a solution for hybrid applications where the two different kinds of fiber connectors or cable assemblies need to be linked with each other.

Features:
Types: FC-LC, FC-SC, FC-ST, FC-MU, SC-ST,SC-LC,SC-MU,ST-LC,SMA-ST,SMA-FC
Low insertion loss, high return loss
Good compatibility
High precision of mechanical dimensions
High reliability & stability
Ceramic or Bronze Sleeve
PC,APC,UPC optional
Female to Female,or Female to Male are available.

Application:
Local Area Network
CATV System
Telecommunication Networks
Equipment Test

Specification:

Parameter	Unit	LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC, FC-LC, FC-MU,SMA-ST,SMA-FC				MTRJ			E2000
		SM			MM	SM		MM	SM
		PC	UPC	APC	PC	PC	UPC	PC	PC	APC
Insertion Loss (Typical)	dB	≤0.3	≤0.2	≤0.3	≤0.2	≤0.3	≤0.2	≤0.2	≤0.3	≤0.3
Return Loss	dB	≥45	≥50	≥60	≥30	≥45	≥50	≥35	≥55	≥75
Exchangeability	dB	≤0.2				≤0.2			≤0.2
Repeatability	dB	≤0.2				≤0.2			≤0.2
Durability	Time	>1000				>1000			>1000
Operating Temperature	°C	-40~75				-40~75			-40~75
Storage Temperature	°C	-45~85				-45~85			-45~85
